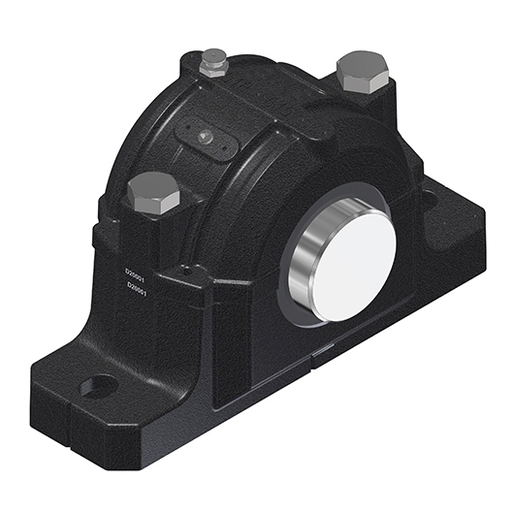

Разъемные подшипниковые узлы

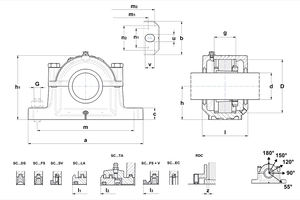

Обозначение
d?
a?
b?
h?
h1?
m?
u?
Управление
SNL505, SNT505, SNN505, SNC505, SNHF505
a:
20
b:
165
h:
46
h1:
40
m:
74
u:
130
:
15
-
+
SNL506-605, SNT506-605, SNN506-605, SNC506-605, SNHF506-605
a:
25
b:
185
h:
52
h1:
50
m:
89
u:
150
:
15
-
+
SNL507-606, SNT507-606, SNN507-606, SNC507-606, SNHF507-606
a:
30
b:
185
h:
52
h1:
50
m:
93
u:
150
:
15
-
+
SNL508-607, SNT508-607, SNN508-607, SNC508-607, SNHF508-607
a:
35
b:
205
h:
60
h1:
60
m:
107
u:
170
:
15
-
+
SNL509, SNT509, SNN509, SNC509, SNHF509
a:
40
b:
205
h:
60
h1:
60
m:
109
u:
170
:
15
-
+
SNL510-608, SNT510-608, SNN510-608, SNC510-608, SNHF510-608
a:
45
b:
205
h:
60
h1:
60
m:
113
u:
170
:
15
-
+
SNL511-609, SNT511-609, SNN511-609, SNC511-609, SNHF511-609
a:
50
b:
255
h:
70
h1:
70
m:
127
u:
210
:
18
-
+
SNL512-610, SNT512-610, SNN512-610, SNC512-610, SNHF512-610
a:
55
b:
255
h:
70
h1:
70
m:
133
u:
210
:
18
-
+
SNL513-611, SNT513-611, SNN513-611, SNC513-611, SNHF513-611
a:
60
b:
275
h:
80
h1:
80
m:
148
u:
230
:
18
-
+
SNL515-612, SNT515-612, SNN515-612, SNC515-612, SNHF515-612
a:
65
b:
280
h:
80
h1:
80
m:
154
u:
230
:
18
-
+
SNL516-613, SNT516-613, SNN516-613, SNC516-613, SNHF516-613
a:
70
b:
315
h:
90
h1:
95
m:
175
u:
260
:
12
-
+
SNL517, SNT517, SNN517, SNC517, SNHF517
a:
75
b:
320
h:
90
h1:
95
m:
183
u:
260
:
22
-
+
SNL518-615, SNT518-615, SNN518-615, SNC518-615, SNHF518-615
a:
80
b:
345
h:
100
h1:
100
m:
193
u:
290
:
22
-
+
SNL619-616, SNT619-616, SNN619-616, SNC619-616, SNHF619-616
a:
85
b:
345
h:
100
h1:
112
m:
210
u:
290
:
22
-
+
SNL520-617, SNT520-617, SNN520-617, SNC520-617, SNHF520-617
a:
90
b:
380
h:
110
h1:
112
m:
218
u:
320
:
26
-
+
SNL522-619, SNT522-619, SNN522-619, SNC522-619, SNHF522-619
a:
100
b:
410
h:
120
h1:
125
m:
239
u:
350
:
26
-
+
SNL524-620, SNT524-620, SNN524-620, SNC524-620, SNHF524-620
a:
110
b:
410
h:
120
h1:
140
m:
271
u:
350
:
26
-
+
SNL526, SNT526, SNN526, SNC526, SNHF526
a:
115
b:
445
h:
130
h1:
150
m:
290
u:
380
:
28
-
+
SNL528, SNT528, SNN528, SNC528, SNHF528
a:
125
b:
500
h:
150
h1:
150
m:
302
u:
420
:
35
-
+
SNL530, SNT530, SNN530, SNC530, SNHF530
a:
135
b:
530
h:
160
h1:
160
m:
323
u:
450
:
35
-
+
SNL532, SNT532, SNN532, SNC532, SNHF532
a:
140
b:
550
h:
160
h1:
170
m:
344
u:
470
:
35
-
+
